TPS650002TRTERQ1 DIP IC Sockets Automotive PMIC 16-WQFN (3x3)

Name: TPS650002TRTERQ1 DIP IC Sockets Automotive PMIC 16WQFN 3x3
Brand: Original
Price: 1 USD

Brand Name : Original

Model Number : TPS650002TRTERQ1

Certification : Original

Place of Origin : Original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Part number : TPS650002TRTERQ1

Applications : Automotive

Voltage - Supply : 2.3V ~ 6V

Operating Temperature : -40°C ~ 105°C

Mounting Type : Surface Mount

Supplier Device Package : 16-WQFN (3x3)

Series : Automotive, AEC-Q100

Base Product Number : TPS650002

Contact Now

TPS650002TRTERQ1 DIP IC Sockets Automotive PMIC 16-WQFN (3x3)

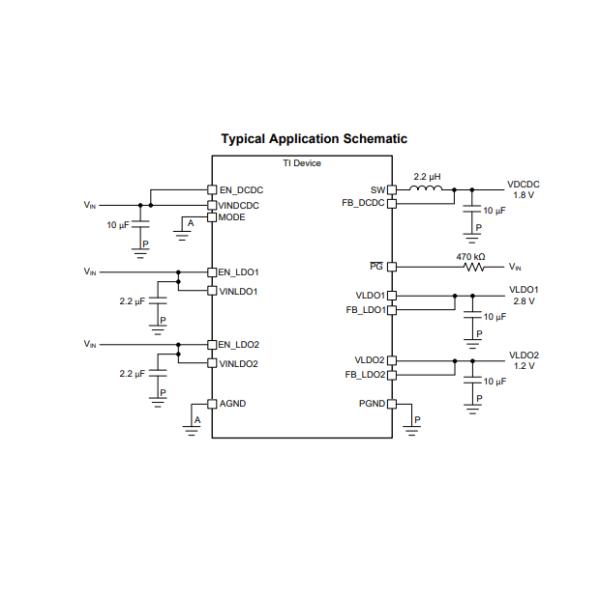

The TPS650002-Q1 device is a single-chip powermanagement IC (PMIC) for automotive applications.
This device combines a single step-down converter with two low-dropout regulators. The step-down
converter enters a low-power mode at light load for maximum efficiency across the widest possible range
of load currents.

Features of TPS650002TRTERQ1

• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 2: –40°C to +105°C,
TA
• Step-down converters:
– VIN range from 2.3 V to 6 V
– 2.25-MHz Fixed-frequency operation
– 600-mA Output current
• LDOs:
– VIN Range From 1.6 V to 6 V
– Up to 300-mA output current
– Separate power inputs and enables
• 3-mm × 3-mm 16-Pin WQFN

Specifications of TPS650002TRTERQ1

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs) Power Management (PMIC) Power Management - Specialized
Mfr	Texas Instruments
Series	Automotive, AEC-Q100
Package	Tape & Reel
Product	TPS650002TRTERQ1
Applications	Automotive
Current - Supply	-
Voltage - Supply	2.3V ~ 6V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Supplier Device Package	16-WQFN (3x3)
Base Product Number	TPS650002

Applications of TPS650002TRTERQ1

• Automotive camera module

• Automotive infotainment

• Automotive cluster

• Automotive sensor fusion

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
