TLC1543QDWR 10 Bit Analog To Digital Converter 11 Input 1 SAR 20 SOIC

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

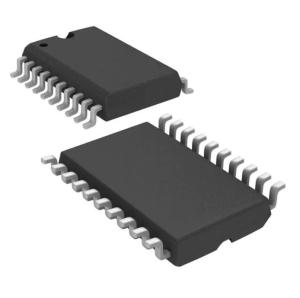

TLC1543QDWR 10 Bit Analog To Digital Converter 11 Input 1 SAR 20 SOIC

Brand Name : original

Model Number : TLC1543QDWR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Number of Bits : 10

Sampling Rate (Per Second) : 38k

Number of Inputs : 11

Input Type : Single Ended

Data Interface : SPI

Configuration : MUX-S/H-ADC

Ratio - S/H:ADC : 1:01

Contact Now

TLC1543QDWR Emmc Memory Chip Ic Adc 10bit Sar 20soic 296-42694-1-ND
10 Bit Analog to Digital Converter 11 Input 1 SAR 20-SOIC

Specifications of TLC1543QDWR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Number of Bits 10
Sampling Rate (Per Second) 38k
Number of Inputs 11
Input Type Single Ended
Data Interface SPI
Configuration MUX-S/H-ADC
Ratio - S/H:ADC 1:01
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
Features Selectable Address
Operating Temperature -40°C ~ 125°C
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Mounting Type Surface Mount
Base Product Number TLC1543

Features of TLC1543QDWR

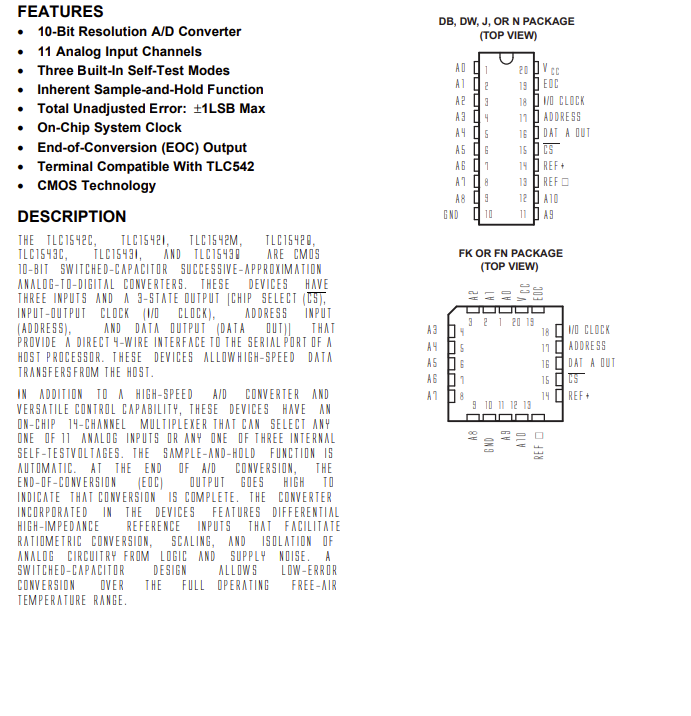

• 10-Bit Resolution A/D Converter
• 11 Analog Input Channels
• Three Built-In Self-Test Modes
• Inherent Sample-and-Hold Function
• Total Unadjusted Error: ±1LSB Max
• On-Chip System Clock
• End-of-Conversion (EOC) Output
• Terminal Compatible With TLC542
• CMOS Technology

Applications of TLC1543IDWR

The TLC1542C, TLC1542I, TLC1542M, TLC1542Q, TLC1543C, TLC1543I, and TLC1543Q are CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converters. These devices have three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. These devices allowhigh-speed data
transfersfrom the host.

Environmental & Export Classifications of TLC1543QDWR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TLC1543QDWR 10 Bit Analog To Digital Converter 11 Input 1 SAR 20 SOIC


Product Tags:

TLC1543QDWR



10 Bit Analog To Digital Converter



20 SOIC Analog To Digital Converter


Buy cheap TLC1543QDWR 10 Bit Analog To Digital Converter 11 Input 1 SAR 20 SOIC product
