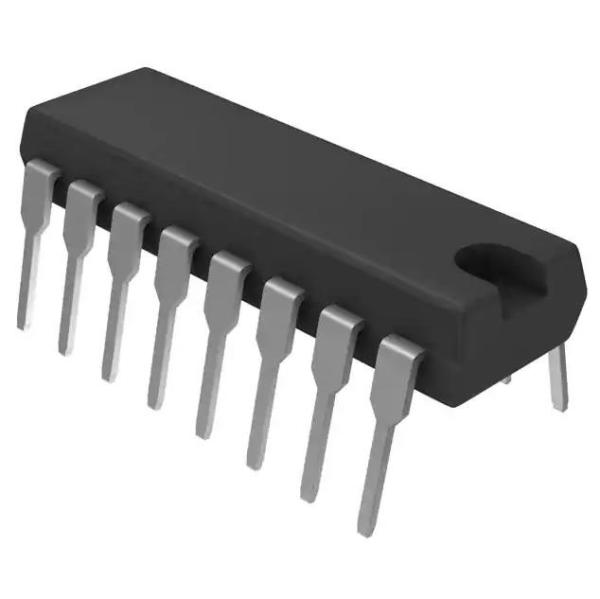

AM26LS31CN EMMC Memory Chip 4/0 Driver RS422, RS485 16-PDIP 0°C ~ 70°C
IC AFE 3 CHAN 24BIT 28WQFN 3 Channel AFE 24 Bit 28-WQFN (5x5)
The AM26LS31 family of devices is a quadruple complementary-output line driver designed to meet
the requirements of ANSI TIA/EIA-422-B and ITU (formerly CCITT) Recommendation V.11. The 3-state
outputs have high-current capability for driving balanced lines such as twisted-pair or parallel-wire
transmission lines, and they are in the highimpedance state in the power-off condition. The enable function
is common to all four drivers and offers the choice of an active-high or active-low
enable (G, G) input. Low-power Schottky circuitry reduces power consumption without sacrificing speed.
Features of AM26LS31CN
• Meets or Exceeds the Requirements of ANSI
TIA/EIA-422-B and ITU
• Operates From a Single 5-V Supply
• TTL-Compatible
• Complementary Outputs
• High Output Impedance in Power-Off Conditions
• Complementary Output-Enable Inputs
• Available MIL-PRF-38535-Qualified Options (M):
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
Specifications of AM26LS31CN
| Mfr | |
| Series | |
| Product | |
| Type | |
| Protocol | |
| Number of Drivers/Receivers | |
| Duplex | |
| Data Rate | |
| Voltage - Supply | |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
| Base Product Number | AM26LS31 |
Applications of AM26LS31CN
• Motor Encoders
• Field Transmitters: Pressure Sensors and Temperature Sensors
• Military and Avionics Imaging
• Temperature Sensors or Controllers Using Modbus
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
