STM32F302RDT6TR Emmc Memory Chip Ic Mcu 32bit 384kb Flash 64lqfp

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

STM32F302RDT6TR Emmc Memory Chip Ic Mcu 32bit 384kb Flash 64lqfp

Brand Name : original

Model Number : STM32F302RDT6TR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Digi-Key Programmable : Not Verified

Core Processor : ARM® Cortex®-M4

Core Size : 32-Bit Single-Core

Speed : 72MHz

Connectivity : CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB

Peripherals : DMA, I²S, POR, PWM, WDT

Number of I/O : 51

Contact Now

STM32F302RDT6TR Emmc Memory Chip Ic Mcu 32bit 384kb Flash 64lqfp
ARM® Cortex®-M4 STM32F3 Microcontroller IC 32-Bit Single-Core 72MHz 384KB (384K x 8) FLASH 64-LQFP (10x10)

Specifications of STM32F302RDT6TR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series STM32F3
Package Tape & Reel (TR)
Product Status Active
Digi-Key Programmable Not Verified
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 72MHz
Connectivity CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals DMA, I²S, POR, PWM, WDT
Number of I/O 51
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V
Data Converters A/D 16x12b; D/A 1x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number STM32F302

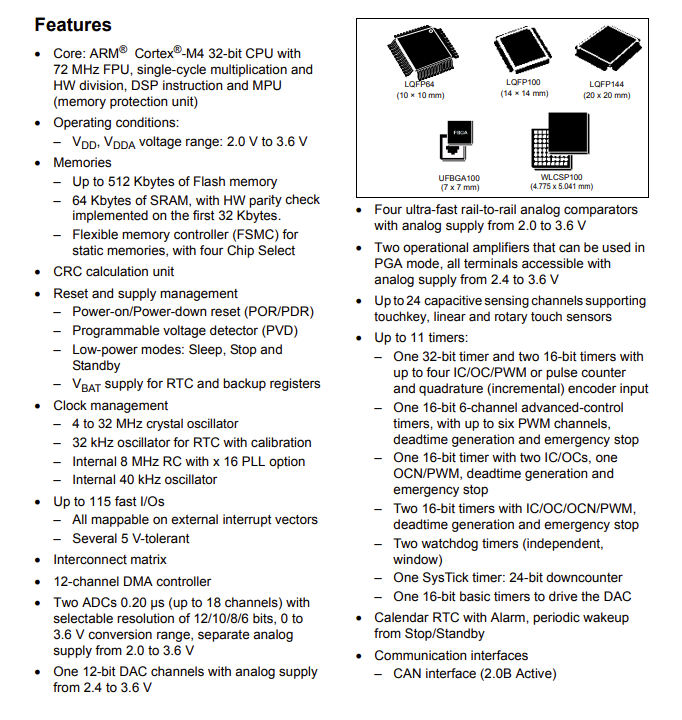

Features of STM32F302RDT6TR

• Core: ARM® Cortex®-M4 32-bit CPU with 72 MHz FPU, single-cycle multiplication and HW division, DSP instruction and MPU (memory protection unit)
• Operating conditions:
– VDD, VDDA voltage range: 2.0 V to 3.6 V
• Memories
– Up to 512 Kbytes of Flash memory
– 64 Kbytes of SRAM, with HW parity check implemented on the first 32 Kbytes.
– Flexible memory controller (FSMC) for static memories, with four Chip Select
• CRC calculation unit
• Reset and supply management
– Power-on/Power-down reset (POR/PDR)
– Programmable voltage detector (PVD)
– Low-power modes: Sleep, Stop and Standby
– VBAT supply for RTC and backup registers
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x 16 PLL option
– Internal 40 kHz oscillator
• Up to 115 fast I/Os
– All mappable on external interrupt vectors
– Several 5 V-tolerant
• Interconnect matrix
• 12-channel DMA controller
• Two ADCs 0.20 µs (up to 18 channels) with selectable resolution of 12/10/8/6 bits, 0 to 3.6 V conversion range, separate analog supply from 2.0 to 3.6 V
• One 12-bit DAC channels with analog supply from 2.4 to 3.6 V

Applications of STM32F302RDT6TR

• SWD, Cortex®-M4 with FPU ETM, JTAG
• 96-bit unique ID

Environmental & Export Classifications of STM32F302RDT6TR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
