STM32F030C8T6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp

Brand Name : original

Model Number : STM32F030C8T6TR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Digi-Key Programmable : Not Verified

Core Processor : ARM® Cortex®-M0

Core Size : 32-Bit Single-Core

Speed : 48MHz

Connectivity : I²C, SPI, UART/USART

Peripherals : DMA, POR, PWM, WDT

Number of I/O : 39

Contact Now

STM32F030C8T6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp
ARM® Cortex®-M0 STM32F0 Microcontroller IC 32-Bit Single-Core 48MHz 64KB (64K x 8) FLASH 48-LQFP (7x7)

Specifications of STM32F030C8T6TR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series STM32F0
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Digi-Key Programmable Not Verified
Core Processor ARM® Cortex®-M0
Core Size 32-Bit Single-Core
Speed 48MHz
Connectivity I²C, SPI, UART/USART
Peripherals DMA, POR, PWM, WDT
Number of I/O 39
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
Data Converters A/D 12x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7x7)
Base Product Number STM32F030

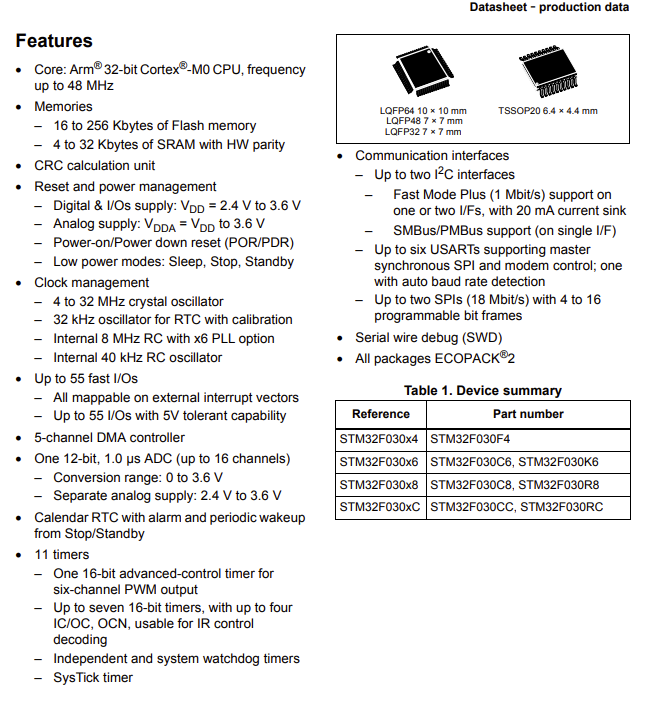

Features of STM32F030C8T6TR

• Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
• Memories
– 16 to 256 Kbytes of Flash memory
– 4 to 32 Kbytes of SRAM with HW parity
• CRC calculation unit
• Reset and power management
– Digital & I/Os supply: VDD = 2.4 V to 3.6 V
– Analog supply: VDDA = VDD to 3.6 V
– Power-on/Power down reset (POR/PDR)
– Low power modes: Sleep, Stop, Standby
• Clock management
– 4 to 32 MHz crystal oscillator
– 32 kHz oscillator for RTC with calibration
– Internal 8 MHz RC with x6 PLL option
– Internal 40 kHz RC oscillator
• Up to 55 fast I/Os
– All mappable on external interrupt vectors
– Up to 55 I/Os with 5V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 µs ADC (up to 16 channels)
– Conversion range: 0 to 3.6 V
– Separate analog supply: 2.4 V to 3.6 V
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• 11 timers
– One 16-bit advanced-control timer for six-channel PWM output
– Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
– Independent and system watchdog timers
– SysTick timer
• Communication interfaces
– Up to two I2C interfaces
– Fast Mode Plus (1 Mbit/s) support on one or two I/Fs, with 20 mA current sink
– SMBus/PMBus support (on single I/F)
– Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
– Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames
• Serial wire debug (SWD)
• All packages ECOPACK®2

Applications of STM32F030C8T6TR

Unless otherwise specified, typical data are based on TA = 25 °C, VDD = VDDA = 3.3 V. They are given only as design guidelines and are not tested. Typical ADC accuracy values are determined by characterization of a batch of samples from a standard diffusion lot over the full temperature range, where 95% of the devices have an error less than or equal to the value indicated (mean ±2σ).

Environmental & Export Classifications of STM32F030C8T6TR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001

STM32F030C8T6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp


Buy cheap STM32F030C8T6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp product

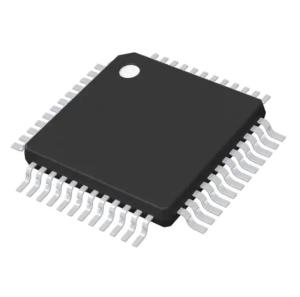

STM32F030C8T6TR Emmc Memory Chip Ic Mcu 32bit 64kb Flash 48lqfp Images
