AT17LV010-10CU Emmc Memory Chip IC Srl Config Eeprom 1m 8-Lap

SZ ADE Electronics Co., Ltd
Contact Now

AT17LV010-10CU Emmc Memory Chip IC Srl Config Eeprom 1m 8-Lap

Brand Name : original

Model Number : AT17LV010-10CU

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tube

Product Status : Active

Digi-Key Programmable : Not Verified

Programmable Type : Serial EEPROM

Memory Size : 1Mb

Voltage - Supply : 3V ~ 3.6V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Contact Now

AT17LV010-10CU Emmc Memory Chip IC Srl Config Eeprom 1m 8-Lap

AT17LV010-10CU-ND

Specifications of AT17LV010-10CU

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Memory
Configuration Proms for FPGAs
Mfr Microchip Technology
Series -
Package Tube
Product Status Active
Digi-Key Programmable Not Verified
Programmable Type Serial EEPROM
Memory Size 1Mb
Voltage - Supply 3V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-TDFN
Supplier Device Package 8-LAP (6x6)
Base Product Number AT17LV010

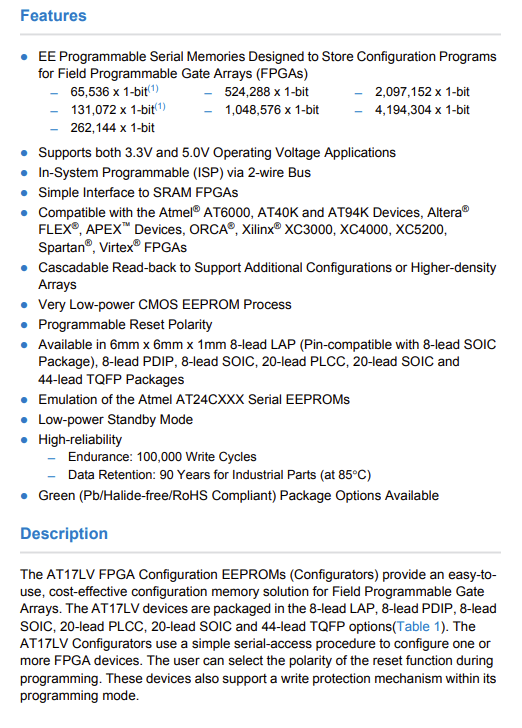

Features of AT17LV010-10CU

• EE Programmable Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
̶ 65,536 x 1-bit(1)
̶ 131,072 x 1-bit(1)
̶ 262,144 x 1-bit
̶ 524,288 x 1-bit
̶ 1,048,576 x 1-bit
̶ 2,097,152 x 1-bit
̶ 4,194,304 x 1-bit
• Supports both 3.3V and 5.0V Operating Voltage Applications
• In-System Programmable (ISP) via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with the Atmel® AT6000, AT40K and AT94K Devices, Altera®
FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs
• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays
• Very Low-power CMOS EEPROM Process
• Programmable Reset Polarity
• Available in 6mm x 6mm x 1mm 8-lead LAP (Pin-compatible with 8-lead SOIC Package), 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP Packages
• Emulation of the Atmel AT24CXXX Serial EEPROMs
• Low-power Standby Mode
• High-reliability
̶ Endurance: 100,000 Write Cycles
̶ Data Retention: 90 Years for Industrial Parts (at 85C)
• Green (Pb/Halide-free/RoHS Compliant) Package Options Available

Applications of AT17LV010-10CU

The AT17LV FPGA Configuration EEPROMs (Configurators) provide an easy-touse, cost-effective configuration memory solution for Field Programmable Gate Arrays. The AT17LV devices are packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP options(Table 1). The AT17LV Configurators use a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function during programming. These devices also support a write protection mechanism within its programming mode.

Environmental & Export Classifications of AT17LV010-10CU

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
