16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6

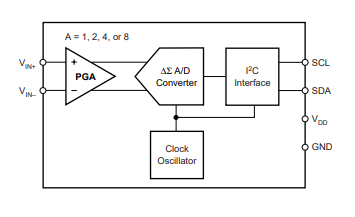

The ADS1100 is designed for applications requiring highresolution measurement, where space and power consumption are major considerations. Typical applications include portable instrumentation, industrial process control, and smart transmitters.
Features of ADS1100A0IDBVR
● COMPLETE DATA ACQUISITION SYSTEM IN A
TINY SOT23-6 PACKAGE
● 16-BITS NO MISSING CODES
● INL: 0.0125% of FSR MAX
● CONTINUOUS SELF-CALIBRATION
● SINGLE-CYCLE CONVERSION
● PROGRAMMABLE GAIN AMPLIFIER
GAIN = 1, 2, 4, OR 8
● LOW NOISE: 4µVp-p
● PROGRAMMABLE DATA RATE: 8SPS to 128SPS
● INTERNAL SYSTEM CLOCK
● I2CTM INTERFACE
● POWER SUPPLY: 2.7V to 5.5V
● LOW CURRENT CONSUMPTION: 90µA
● AVAILABLE IN EIGHT DIFFERENT ADDRESSES
Specifications of ADS1100A0IDBVR
| Product | |
| Number of Bits | |
| Sampling Rate (Per Second) | |
| Number of Inputs | |
| Input Type | Differential, Single Ended |
| Data Interface | |
| Configuration | |
| Ratio - S/H:ADC | |
| Number of A/D Converters | |
| Architecture | |
| Reference Type | |
| Voltage - Supply, Analog | |
| Voltage - Supply, Digital | |
| Features | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Mounting Type | |
| Base Product Number | ADS1100 |
Applications of ADS1100A0IDBVR
● PORTABLE INSTRUMENTATION
● INDUSTRIAL PROCESS CONTROL
● SMART TRANSMITTERS
● CONSUMER GOODS
● FACTORY AUTOMATION
● TEMPERATURE MEASUREMENT
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|

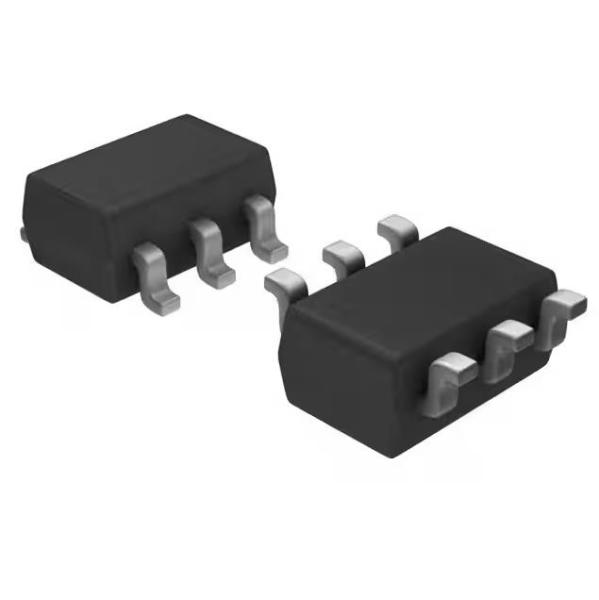

ADS1100A0IDBVR 16 Bit Analog to Digital Converter 1 Input 1 SOT-23-6 Images
|
