ADS1293CISQE / NOPB EMMC Memory Chip 3 Channel AFE 24 Bit 28-WQFN
IC AFE 3 CHAN 24BIT 28WQFN 3 Channel AFE 24 Bit 28-WQFN (5x5)
The ADS1293 incorporates a self-diagnostics alarm
system to detect when the system is out of the
operating conditions range. Such events are reported
to error flags. The overall status of the error flags is
available as a signal on a dedicated ALARMB pin.
Features of ADS1293CISQE/NOPB
● Three High-Resolution Digital ECG Channels With Simultaneous Pace Output
● EMI-Hardened Inputs
● Low Power: 0.3 mW/channel
● Input-Referred Noise:7 μVpp (40-Hz Bandwidth)
● Input Bias Current: 175 pA
● Data Rate:Up to 25.6 ksps
● Differential Input Voltage Range: ±400 mV
● Analog Supply Voltage:2.7V to 5.5V
● Digital I/O Supply Voltage:1.65V to 3.6 V
● Right-Leg Drive Amplifier
● AC and DC Lead-Off Detection
● Wilson and Goldberger Terminals
● ● ALARMB Pin for Interrupt Driven Diagnostics
● Battery Voltage Monitoring
● Built-In Oscillator and Reference
● Flexible Power-Down and Standby Modes
Specifications of ADS1293CISQE/NOPB
| Mfr | |
| Series | |
| Product | |
| Package | Tape & Reel (TR) |
| Number of Bits | |
| Number of Channels | |
| Voltage - Supply, Analog | |
| Voltage - Supply, Digital | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
| Base Product Number | ADS1293 |
Applications of ADS1293CISQE/NOPB
• Portable 1/2/3/5/6/7/8/12-Lead ECG
• Patient Vital Sign Monitoring: Holter, Event, Stress, and Telemedicine
• Automated External Defibrillator
• Sports and Fitness (Heart Rate and ECG)
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
|
|

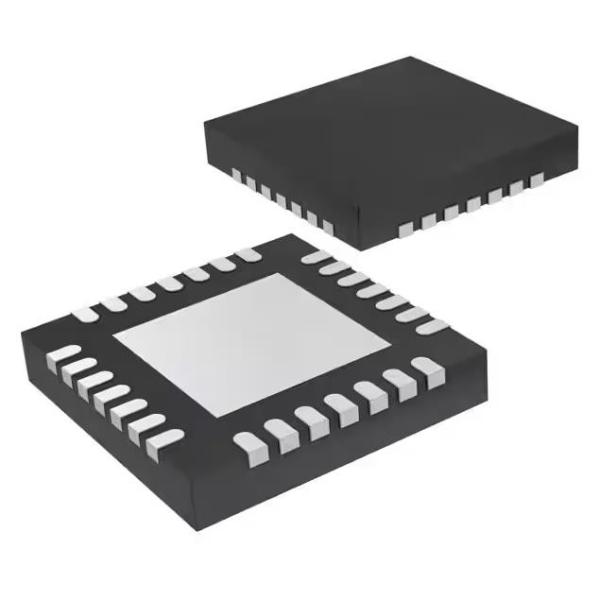

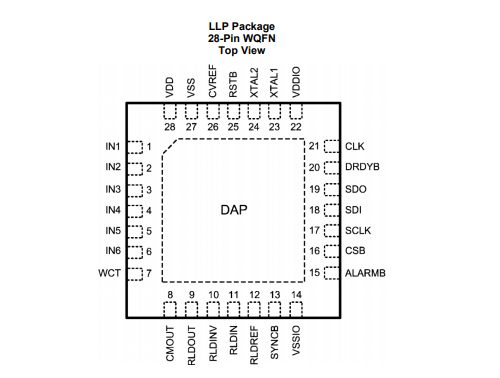

ADS1293CISQE / NOPB EMMC Memory Chip 3 Channel AFE 24 Bit 28-WQFN Images
|
