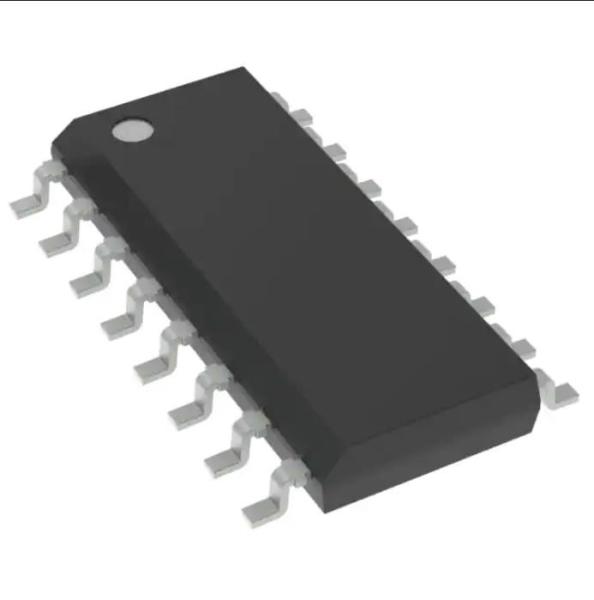

ST7FLITE09M6TR 16SO Microcontroller IC MCU 8BIT 1.5KB FLASH

Brand Name : original

Model Number : ST7FLITE09M6TR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Obsolete

Digi-Key Programmable : Not Verified

Core Processor : ST7

Core Size : 8-Bit

Speed : 8MHz

Connectivity : SPI

Peripherals : LVD, POR, PWM, WDT

Number of I/O : 13

Contact Now

ST7FLITE09M6TR Current Sense Resistors Ic Mcu 8bit 1.5kb Flash 16so
ST7 ST7 Microcontroller IC 8-Bit 8MHz 1.5KB (1.5K x 8) FLASH 16-SO

Specifications of ST7FLITE09M6TR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr STMicroelectronics
Series ST7
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Obsolete
Digi-Key Programmable Not Verified
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 13
Program Memory Size 1.5KB (1.5K x 8)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.5V
Data Converters A/D 5x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Base Product Number ST7FL

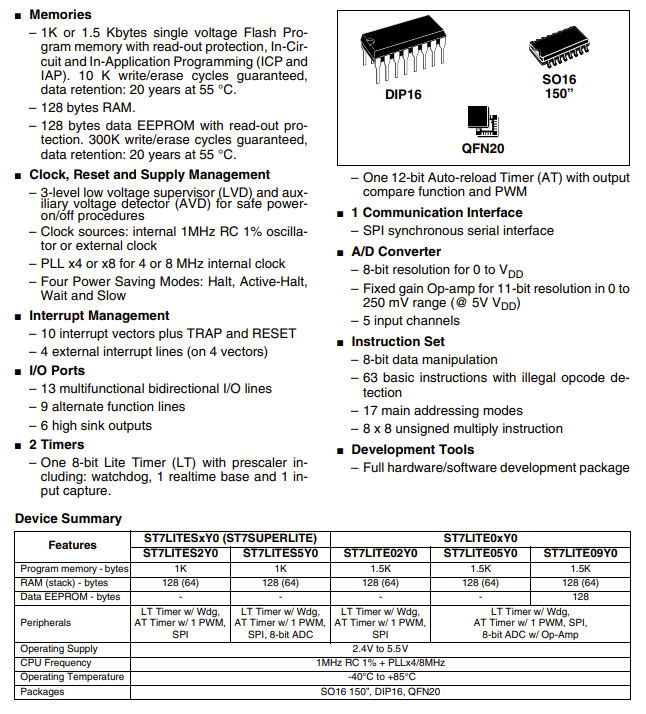

Features of ST7FLITE09M6TR

– 1K or 1.5 Kbytes single voltage Flash Program memory with read-out protection, In-Circuit and In-Application Programming (ICP and IAP). 10 K write/erase cycles guaranteed, data retention: 20 years at 55 °C.
– 128 bytes RAM.
– 128 bytes data EEPROM with read-out protection. 300K write/erase cycles gua

Applications of ST7FLITE09M6TR

Instruction Set
– 8-bit data manipulation
– 63 basic instructions with illegal opcode detection
– 17 main addressing modes
– 8 x 8 unsigned multiply instruction

Environmental & Export Classifications of ST7FLITE09M6TR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
