TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A

Brand Name : original

Model Number : TPS7A7100RGWR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Regulators : 1

Voltage - Input (Max) : 6.5V

Voltage - Output (Min/Fixed) : 0.9V

Voltage - Supply (Max) : 14V

Voltage - Output (Max) : 5V

Voltage Dropout (Max) : 0.35V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : 4mA

Contact Now

TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A

Specifications of TPS7A7100RGWR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Output Configuration Positive
Output Type Adjustable (Fixed)
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 0.9V
Voltage - Output (Max) 5V
Voltage Dropout (Max) 0.35V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 4 mA
PSRR -
Control Features Enable, Power Good, Soft Start
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-VQFN Exposed Pad
Supplier Device Package 20-VQFN (5x5)
Base Product Number TPS7A7100

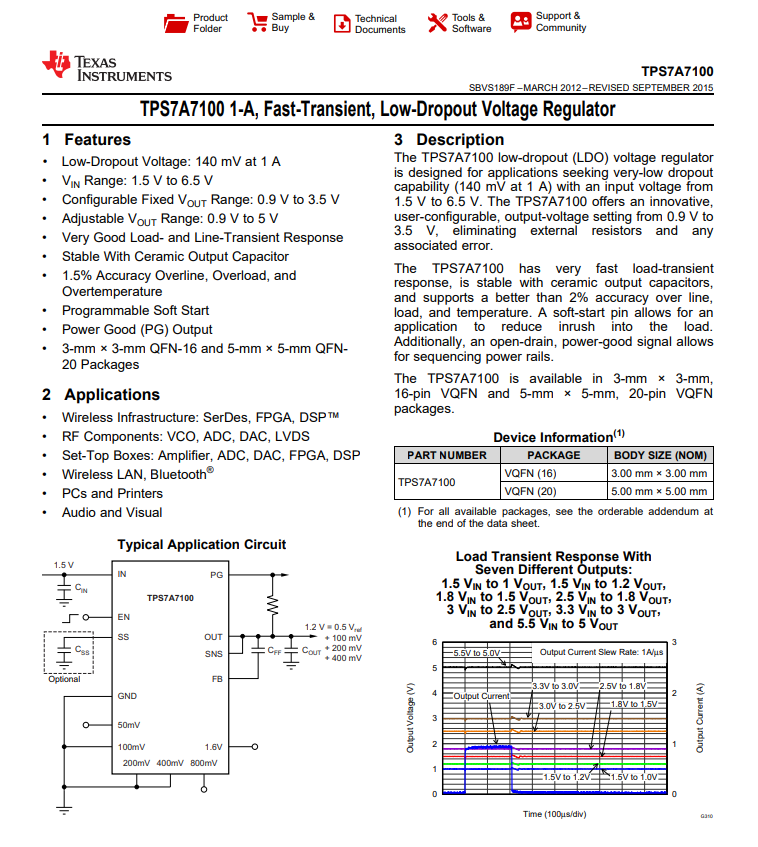

Features of TPS7A7100RGWR


* Low-Dropout Voltage: 140 mV at 1 A
* Vin Range: 1.5 V to 6.5 V
* Configurable Fixed Vou Range: 0.9 V to 3.5 V
* Adjustable VouT Range: 0.9 V to 5 V
* Very Good Load- and Line-Transient Response
* Stable With Ceramic Output Capacitor
* 1.5% Accuracy Overline, Overload, and Overtemperature
* Programmable Soft Start
* Power Good (PG) Output
* 3-mm x 3-mm QFN-16 and 5-mm x 5-mm QFN-20 Packages


Introduction of TPS7A7100RGWR

* Wireless Infrastructure: SerDes, FPGA DSPTM
* RF Components: VCO, ADC, DAC, LVDS
* Set-Top Boxes: Amplifier, ADC, DAC,FPGA, DSP
* Wireless LAN, Bluetooth@
* PCs and Printers
* Audio and Visua

TPS7A7100RGWR Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 1A
