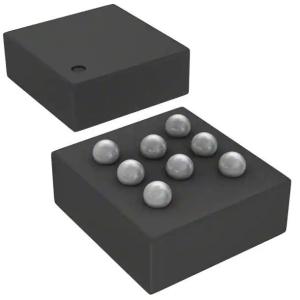

M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8

Brand Name : original

Model Number : M95M01-DFCS6TP/K

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Memory Type : Non-Volatile

Memory Format : EEPROM

Technology : EEPROM

Memory Size : 1Mbit

Memory Organization : 128K x 8

Memory Interface : SPI

Clock Frequency : 16 MHz

Write Cycle Time - Word, Page : 5ms

Contact Now

M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8

Specifications of M95M01-DFCS6TP/K

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Memory
Memory
Mfr STMicroelectronics
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 1Mbit
Memory Organization 128K x 8
Memory Interface SPI
Clock Frequency 16 MHz
Write Cycle Time - Word, Page 5ms
Voltage - Supply 1.7V ~ 5.5V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-UFBGA, WLCSP
Supplier Device Package 8-WLCSP
Base Product Number M95M01

Features of M95M01-DFCS6TP/K

• Compatible with the Serial Peripheral Interface (SPI) bus
• Memory array
– 1 Mbit (128 Kbytes) of EEPROM
– Page size: 256 bytes
• Write
– Byte Write within 5 ms
– Page Write within 5 ms
• Additional Write lockable page (Identification Page)
• Write Protect: quarter, half or whole memory array
• High-speed clock: 16 MHz
• Single supply voltage:
– 1.8 V to 5.5 V for M95M01-R
– 1.7 V to 5.5 V for M95M01-DF
• Operating temperature range: from -40 °C up to +85 °C
• Enhanced ESD protection
• More than 4 million Write cycles
• More than 200-year data retention
• Packages:
– SO8 (ECOPACK2®)
– TSSOP8 (ECOPACK2®)
– WLCSP (ECOPACK2®)
– Unsawn wafer (each die is tested)

Applications of M95M01-DFCS6TP/K

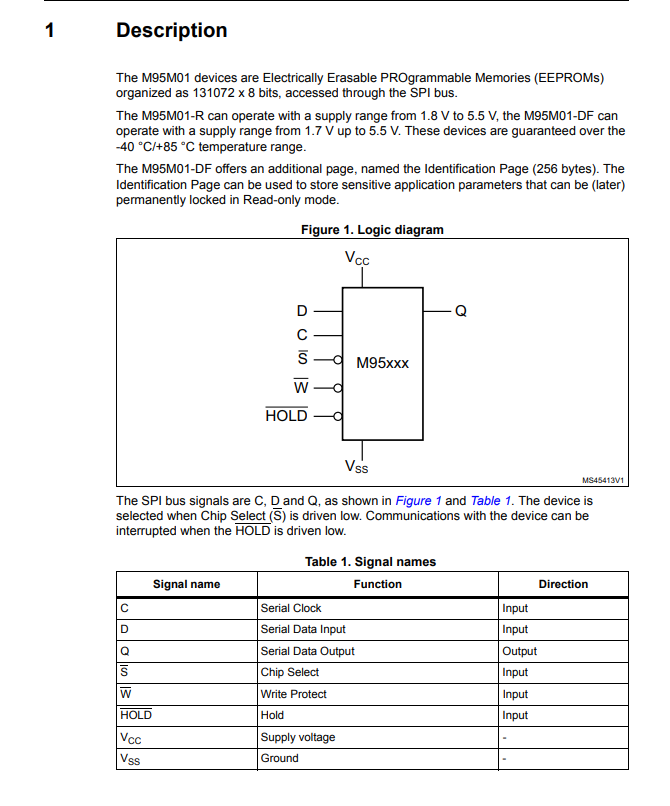

The M95M01 devices are Electrically Erasable PROgrammable Memories (EEPROMs) organized as 131072 x 8 bits, accessed through the SPI bus.


Environmental & Export Classifications of M95M01-DFCS6TP/K

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051


M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8


Buy cheap M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8 product

M95M01-DFCS6TP/K EEPROM Memory IC 1Mbit SPI 16 MHz 8-WLCSP 128K x 8 Images
